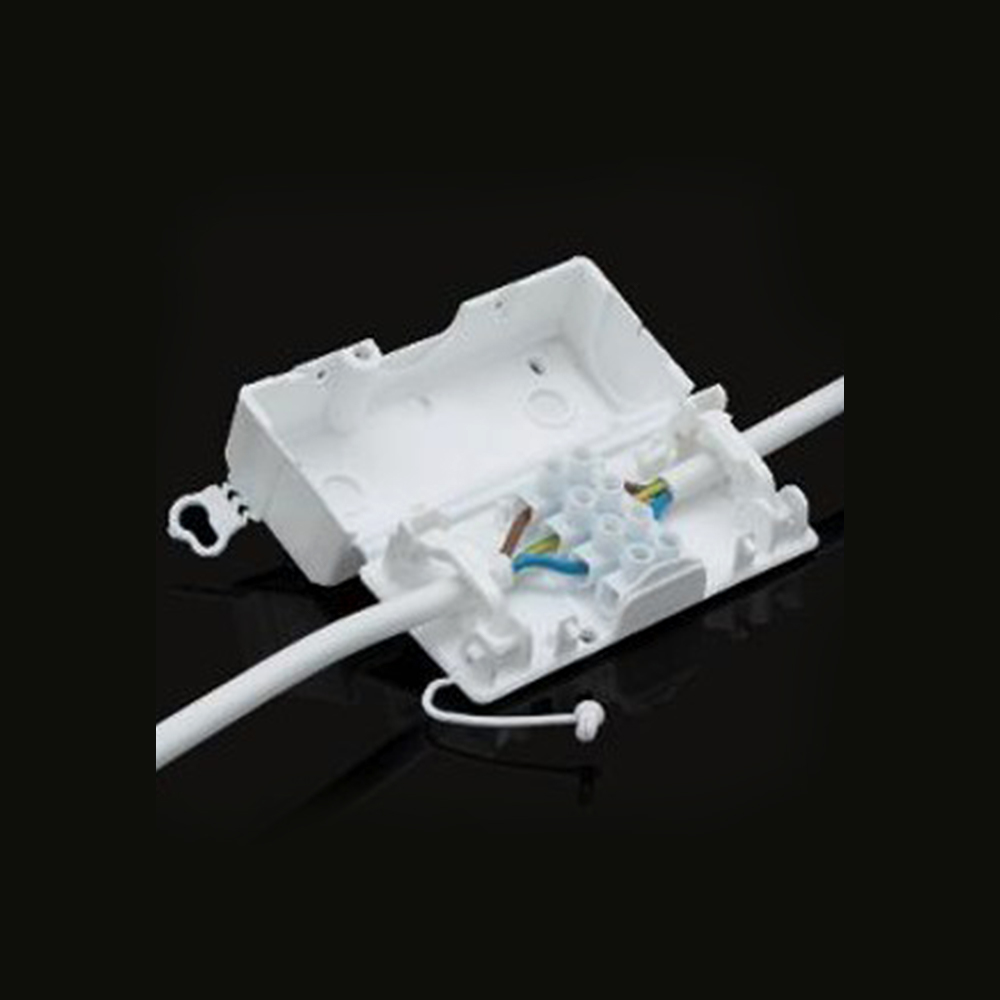

The Smallest 4-Pole Junction Box, fits a 40mm aperture.

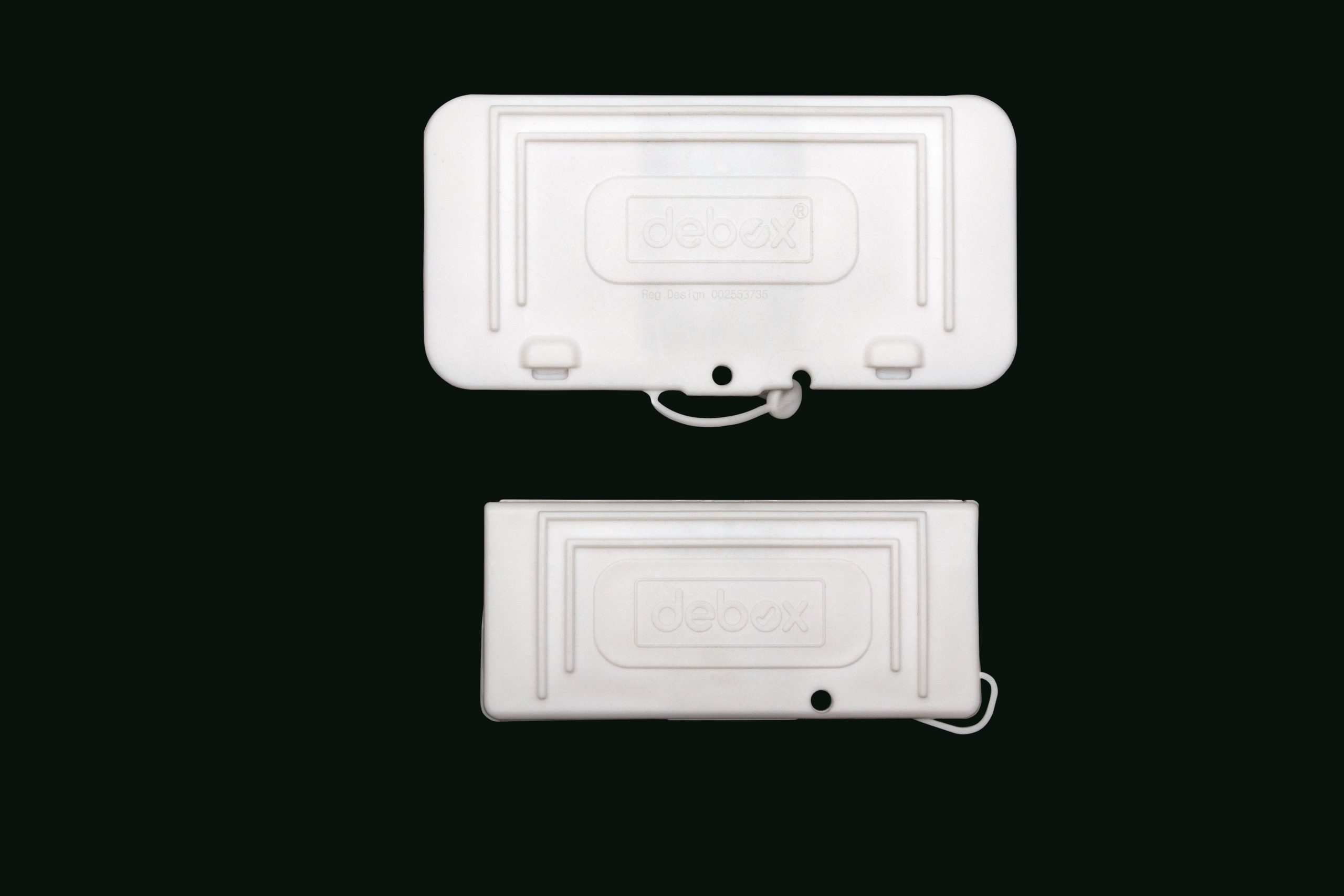

50% of the size of the Debox S
Save time & money with rapid connections,
Captive Screws won’t be dropped
Tool-less Cable Clamps
Fold-out Fixing Lugs
Locking Clip (& spare)
Supplied complete and ready to use, with 24A Terminal Block.
Reg. Design 008190920
£1.25 ex VAT
| Weight | 0.0253 kg |
|---|---|
| Housing Material | Flame retardant Polypropylene |
| Min Temperature Rating °C | -20 |
| Max Temperature Rating °C | 85 |
| Max Current (Amps) | 24 |
| Colour | White |
| Number of Poles | 4 |
| Max Conductor Size (mm2) | 4 |
| Other features | Butterfly Closing Clip (and spare), External Fixing Lugs |
| Width (mm) | 35 |
| Length (mm) | 80 |
| Height (mm) | 25 |
| Part Number | DEKSB-006 |
