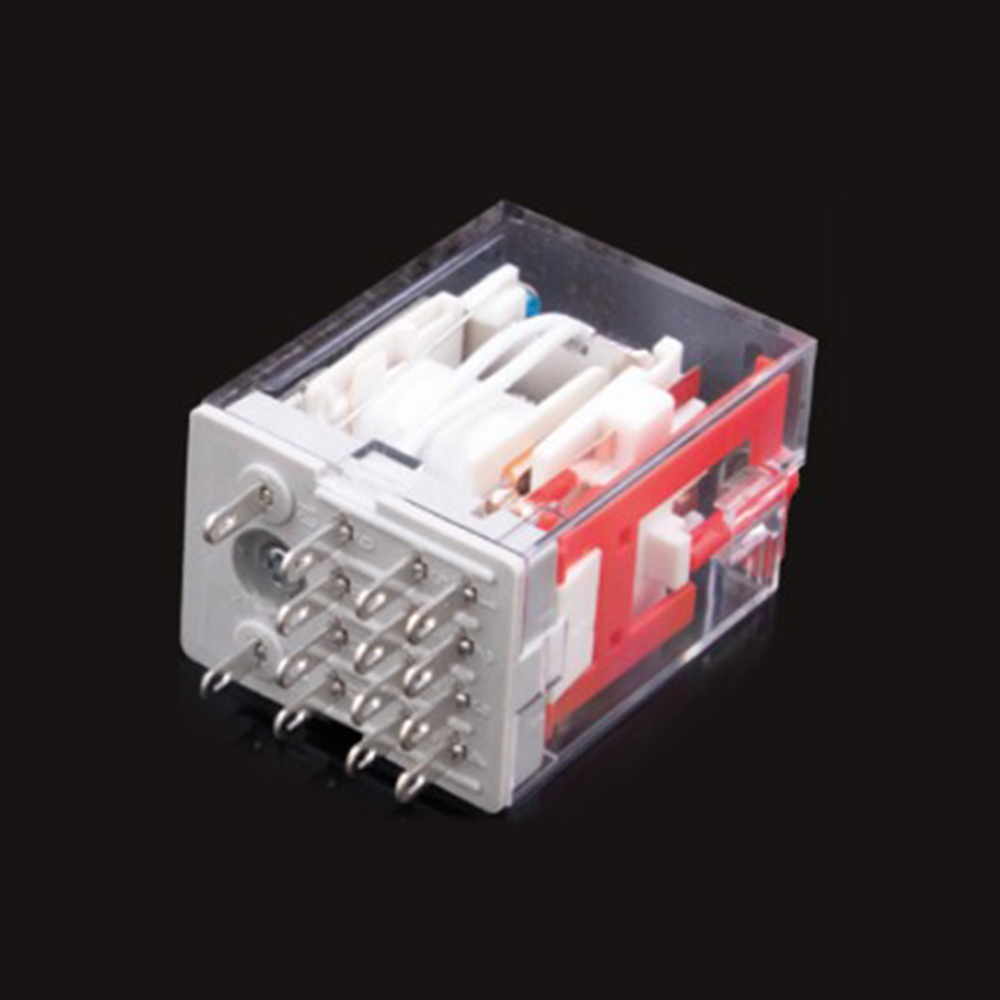

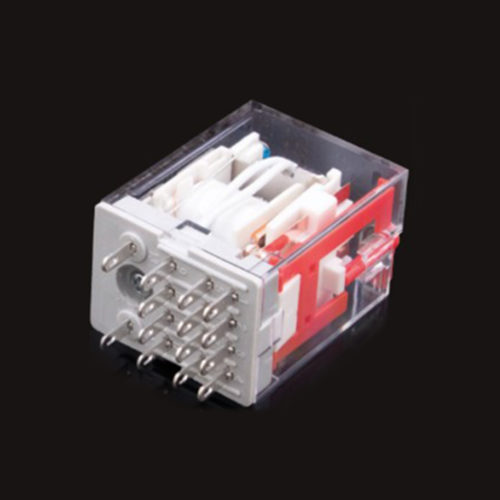

Plug-In Relay (DPRN142.240VAC)

Plug in Relay, 14 Pin, 4 Pole, 24V, 5A

£5.55 ex VAT

Additional information

Weight 0.0313 kg
Ambient Temperature °C

-40°C – +55°C

Number of Poles

4

Contact resistance (mOhm)

50 (1A, 24VDC)

Contact Load (Resistance)

5A 250VAC/30VDC

Max Switching Voltage

250VAC/30VDC

Max Switching Current

5A

Max Switching Power

1250VA/150W

Insulation Resistance (mOhm)

1000 (500VDC)

Operate Time

Max 25ms

Release Time

Max 25ms

Vibration

10-55Hz 1mm

Termination

PCB plug in

Construction

Dust protected

Rated Voltage (VAC)

240

Pick Up Voltage (VAC)

less than equal to 176.0

Drop Out Voltage (VAC)

more than equal to 66.0

Resistance (mOhm)

18790±10%

Part Number DPRN.142
