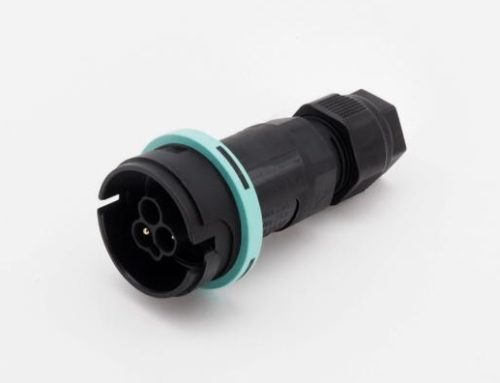

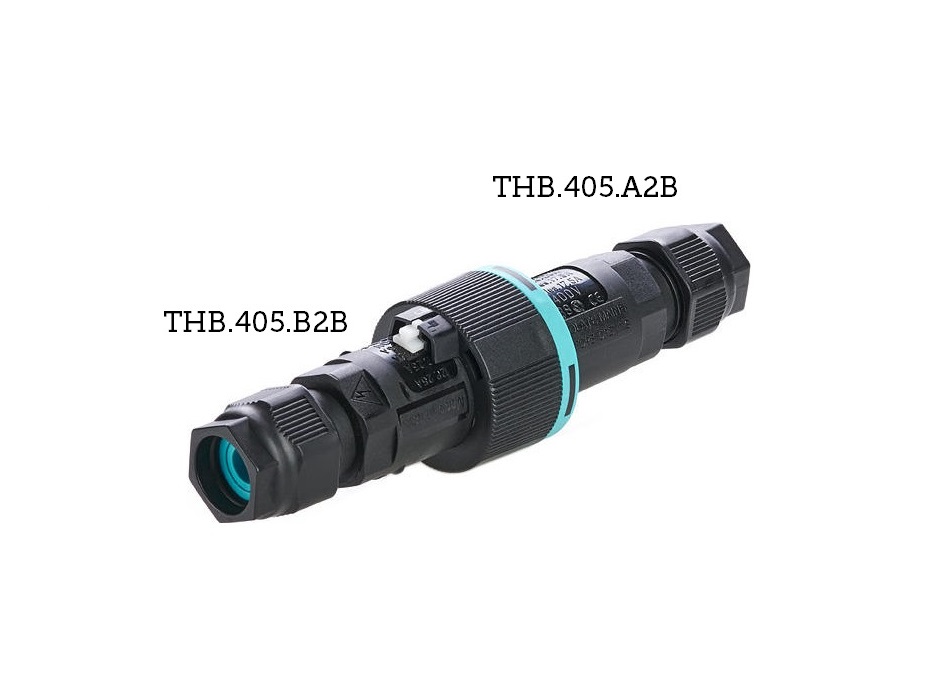

TeePlug Connector (THB.405.A2B)

TeePlug 3 pole Screw terminal, 7mm to 13.5mm cable diameter, 4 mm max conductor size, IP68 Rated, 25A 400V 1 cable entry

£14.69 ex VAT

Additional information

Weight 0.315 kg
Body Material

PA66

Min Temperature Rating °C

-40

Max Temperature Rating °C

125

Max Current (Amps)

25

Max Voltage

400V

Number of Poles

3

Max Conductor Size (mm2)

4

IP Rating

IP68

Minimum Cable Diameter (mm)

7

Maximum Cable Diameter (mm)

13.5

Part Number THB.405.A2B
