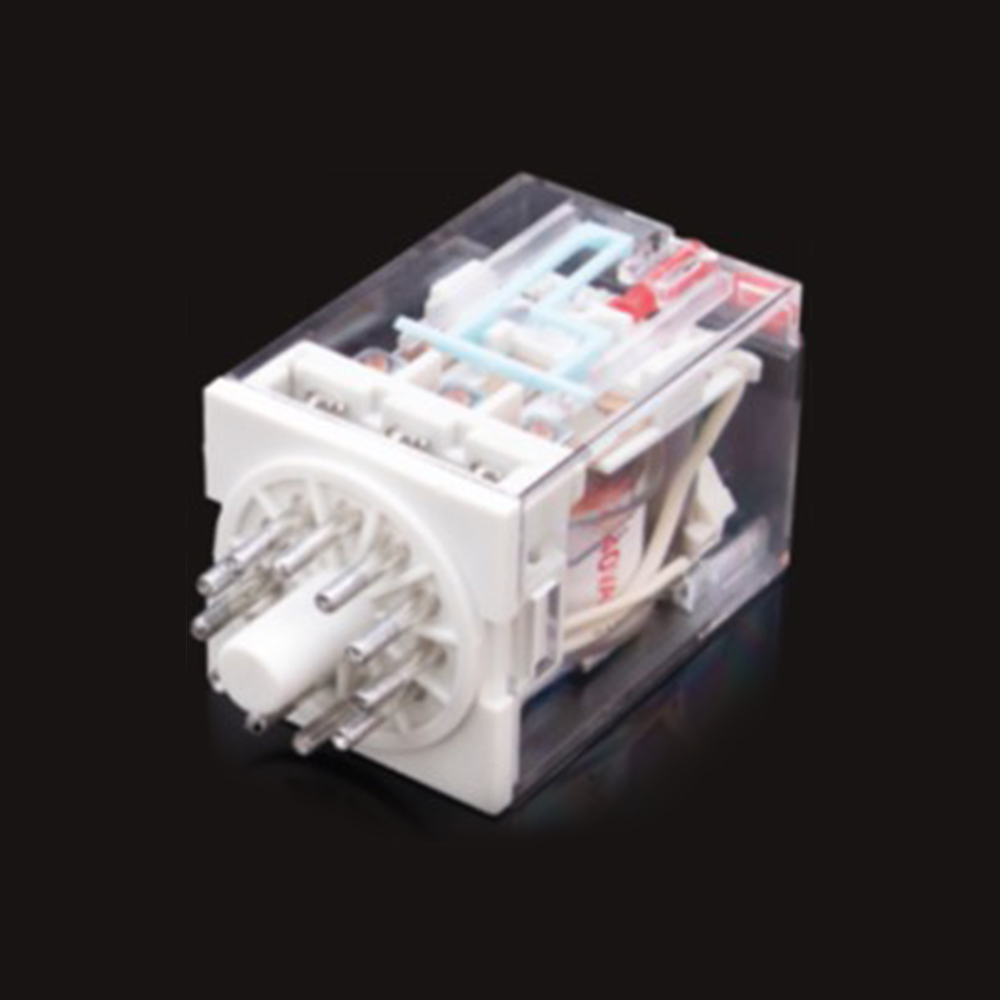

Plug-In Relay (DPRN132.240VAC)

Plug in Relay, 11 Pin, 3 Pole, 240V, 10A

£7.91 ex VAT

Additional information

Weight 0.0816 kg
Ambient Temperature °C

-40°C – +55°C

Number of Poles

3

Contact resistance (mOhm)

100 (1A, 24VDC)

Contact Load (Resistance)

NC: 5A 250VAC/28VDC, NO: 10A 250VAC/28VDC

Max Switching Voltage

250VAC/28VDC

Max Switching Current

10A

Max Switching Power

2500VA/280W

Insulation Resistance (mOhm)

500 (500VDC)

Operate Time

Max 30ms

Release Time

Max 30ms

Vibration

10-55Hz 1mm

Termination

Octal & undecal type plug

Construction

Dust protected

Rated Voltage (VAC)

240

Pick Up Voltage (VAC)

less than equal to 176.0

Drop Out Voltage (VAC)

more than equal to 66.0

Resistance (mOhm)

7100±10%

Part Number DPRN.132
